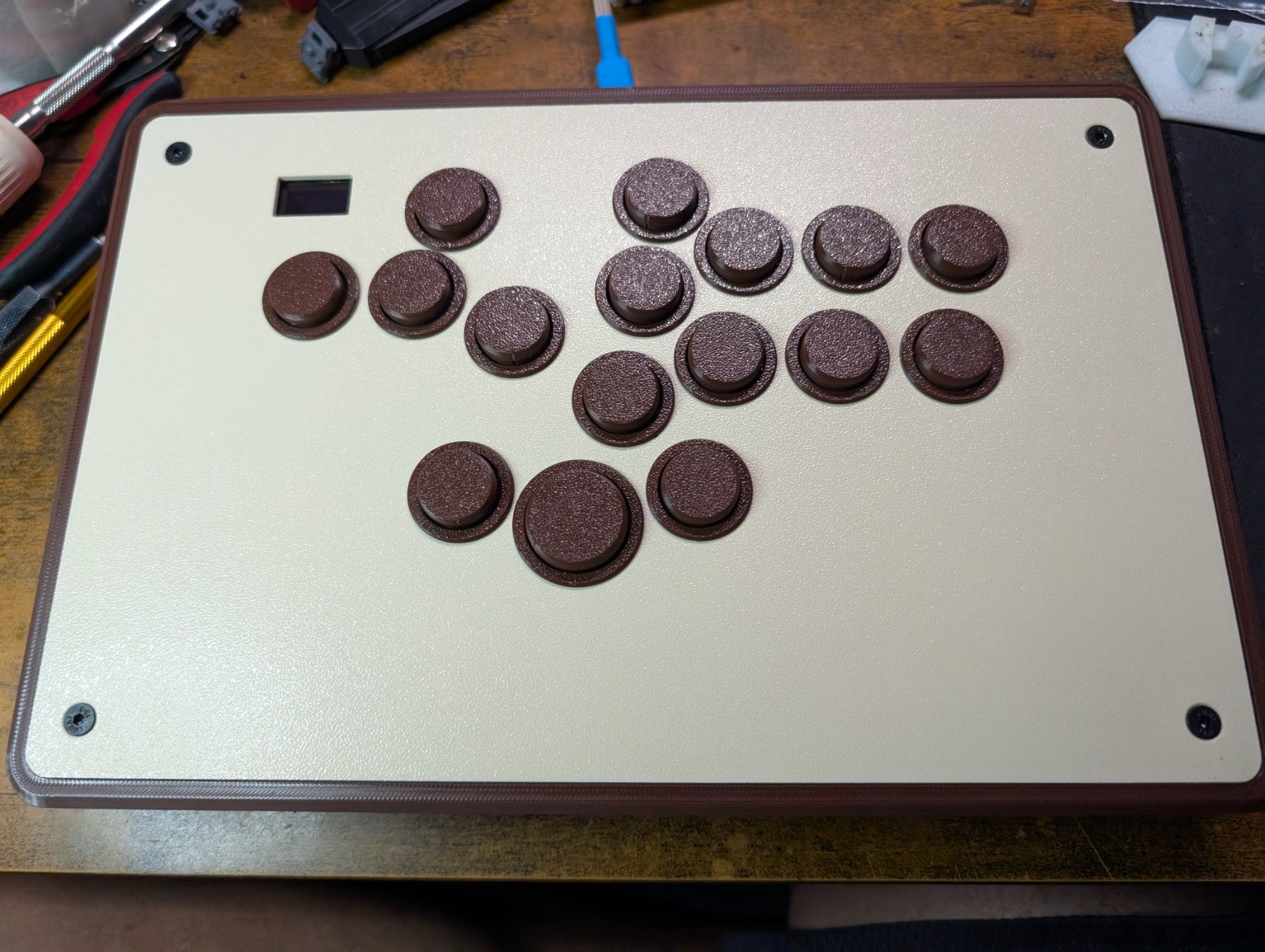

LVS Ultra

3d Printed leverless controller, printed in PLA. Although they are pretty durable, they cannot stand high temperature (above ~130°F/~55°C) or it will start warping/melting. Try not to leave them in your car in a very hot day, but do reach out if you need replacements for anything!

This is designed to be used with low profile OSBMX 24mm and 30mm buttons! Other low profile buttons are recommended if replacing buttons, but have not been tested

• Uses GP2040 Advanced Breakout board
• Choose between PS5 (compatible with only fighting games) or Xbox Series dongles for current gen gameplay

• Heat set brass inserts for ease of assembly and disassembly

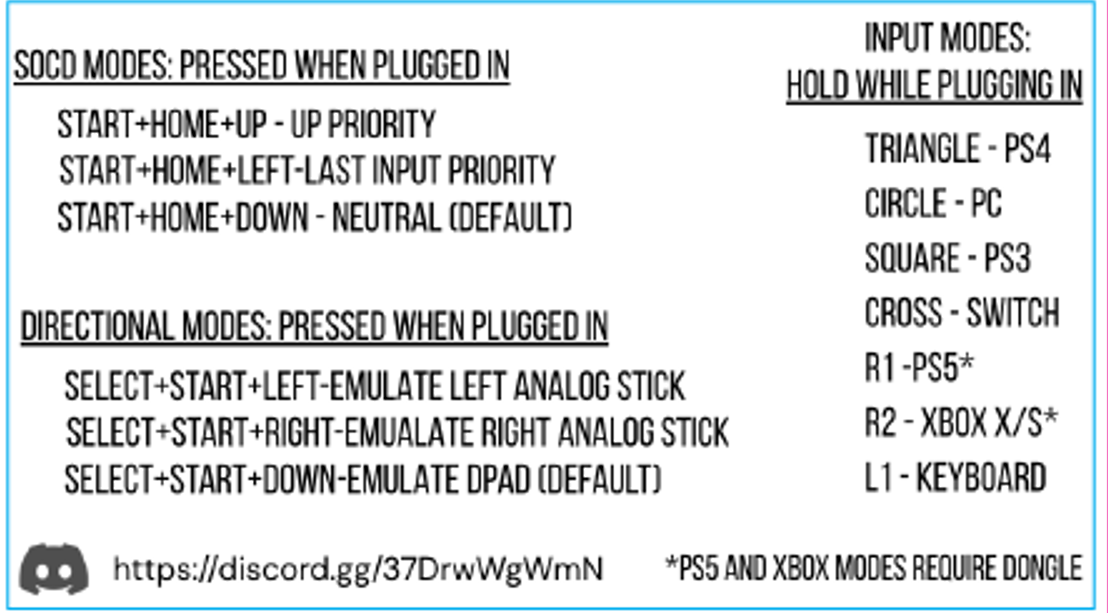

• SOCD Modes: Neutral, Last Priority, or Up Priority

• Uses 24mm OSBMX low profile buttons
• Choose between silent or regular linear switches. Currently, switches are Akko Silver Pro v3 and Outemu Silent Peach.

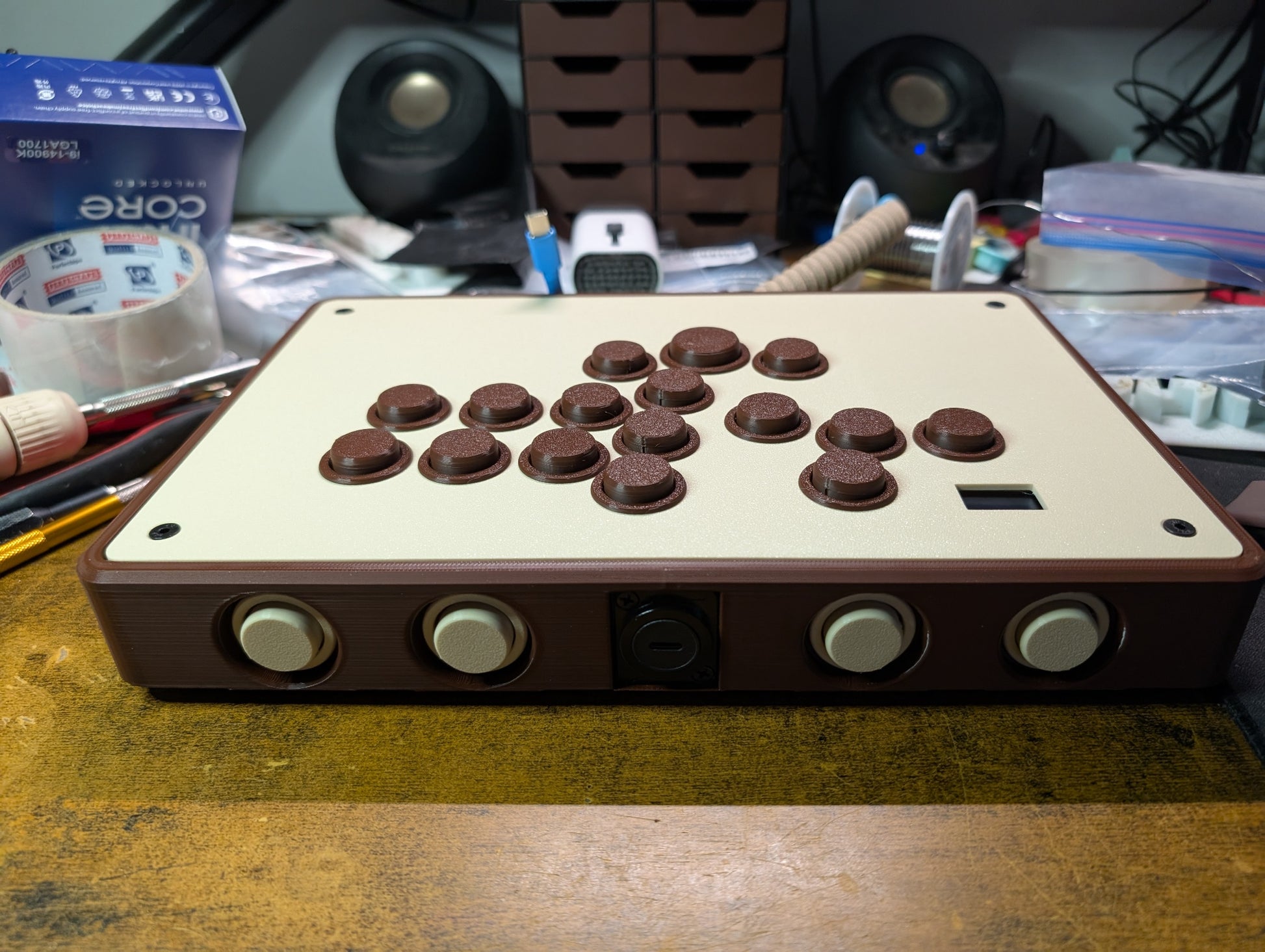

• Panel mounted USB C input connection
• Many colors to choose from! Please see attached photo for color options of buttons, Top panel, bottom panel, middle frame.

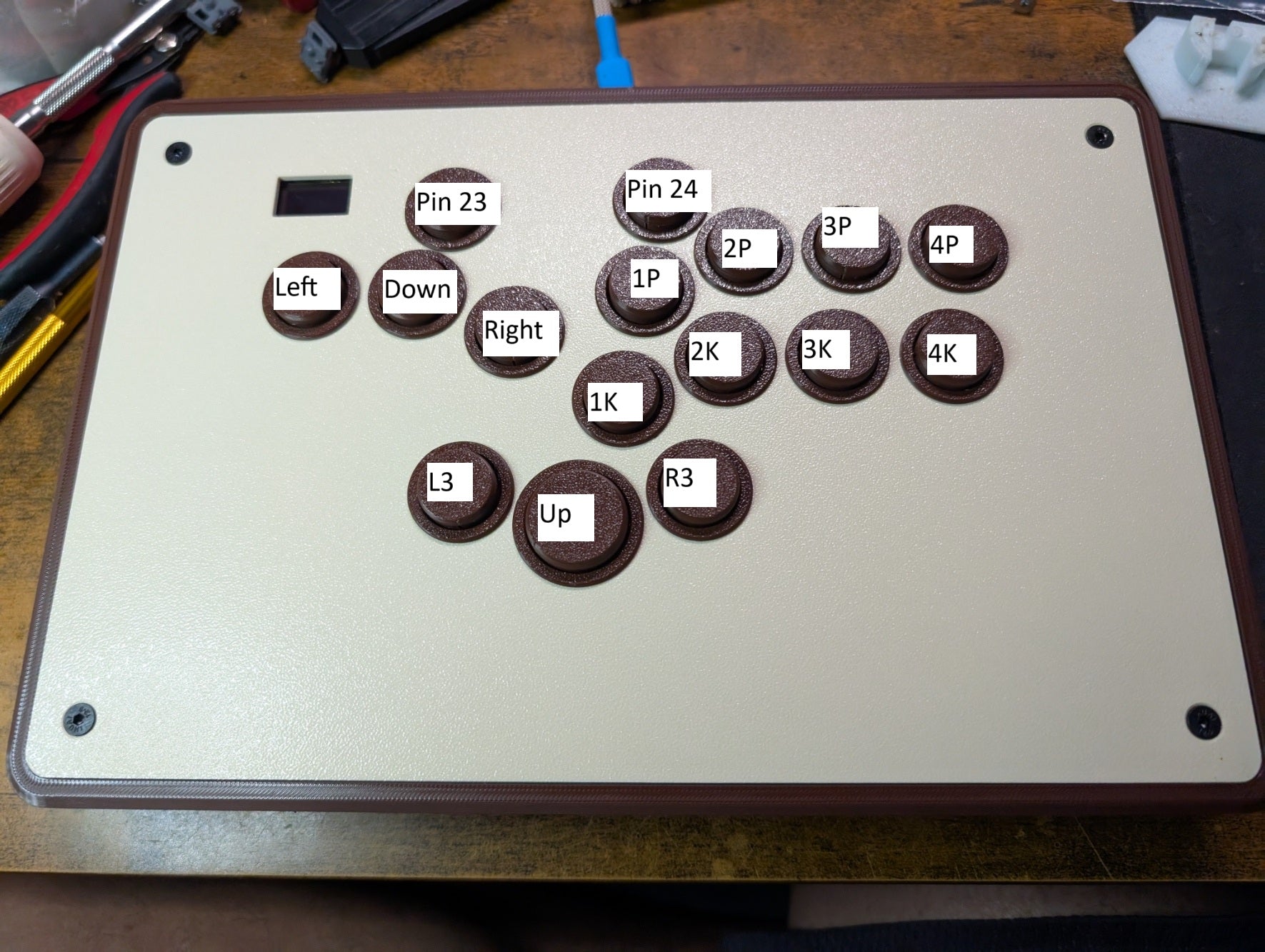

• Uses 17 button layout. Feel free to contact me if another layout is desired
• Extra buttons mapped to Pin 23 and 24. Currently not mapped to anything due to tournament legal rules. To map them, please hold start and go to http://192.168.7.1/ on a browser
• For more info on the gp2040 firmware: https://gp2040-ce.info/

This is a heavily remixed design by me, Remixed from gp2040 open stick :

https://github.com/OpenStickCommunity/Hardware/tree/main/3D%20Prints/Fightstick%20Case
