Leverless Controller - USB Passthrough OLED Edition

An updated version of the Flatbox Leverless with an OLED screen and USB Passthrough for Xbox and PS5 dongles!

• 3d Printed Controller made with PLA

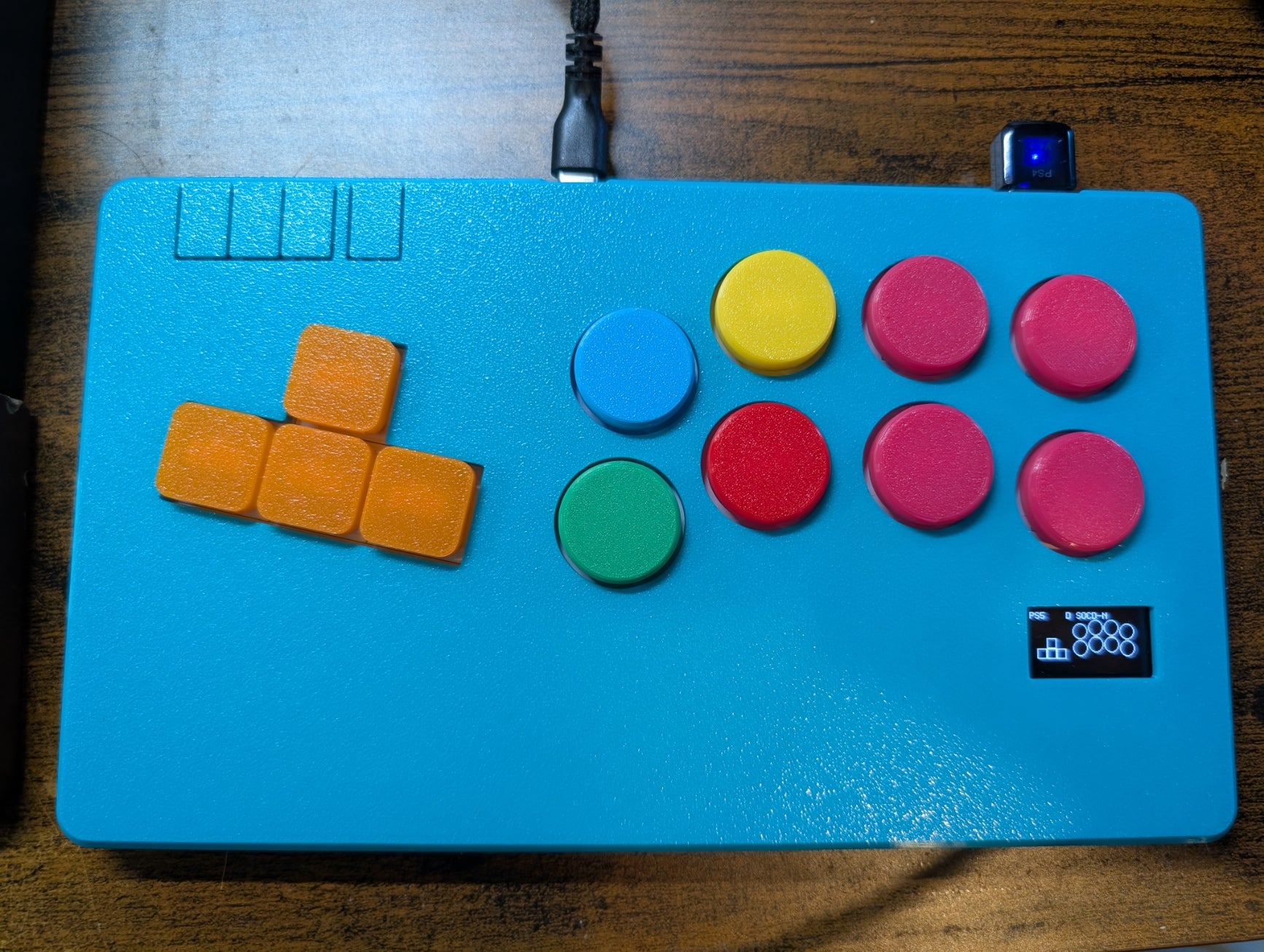

• Choose regular leverless layout or Mixbox

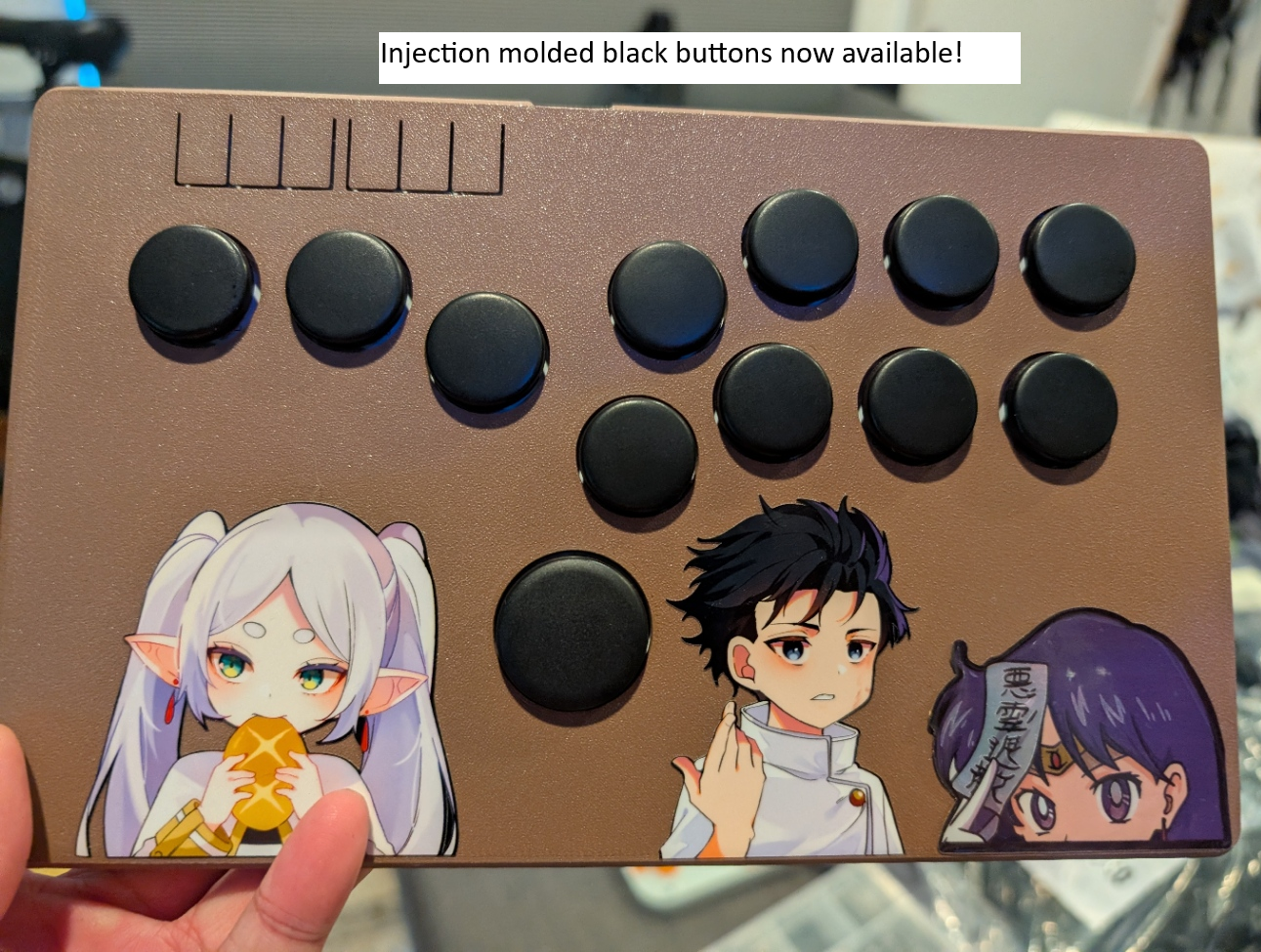

• Choose Injection Molded buttons (Hard Plastic, choc v1, black color only only) or 3d Printed Buttons (more colors, but not as sturdy, comes with replacements)
• Heat set screw inserts installed for ease of re-screwing case
• USB C Input
• Compatible with both Kailh Choc v1 and v2 switches
• Uses Kailh Choc Red Pro v1 switches - Kailh Choc v2 Saker switches available soon!
• Hot-swappable switches
• 5 input modes: PC, Nintendo Switch 1/2, PS4, PS3 and Keyboard.
  • PS5 (Fighting games only) and Xbox X/S supported with dongle
  • Honson F5 dongle is availabe for PS5, and Magicboots dongle available for Xbox.

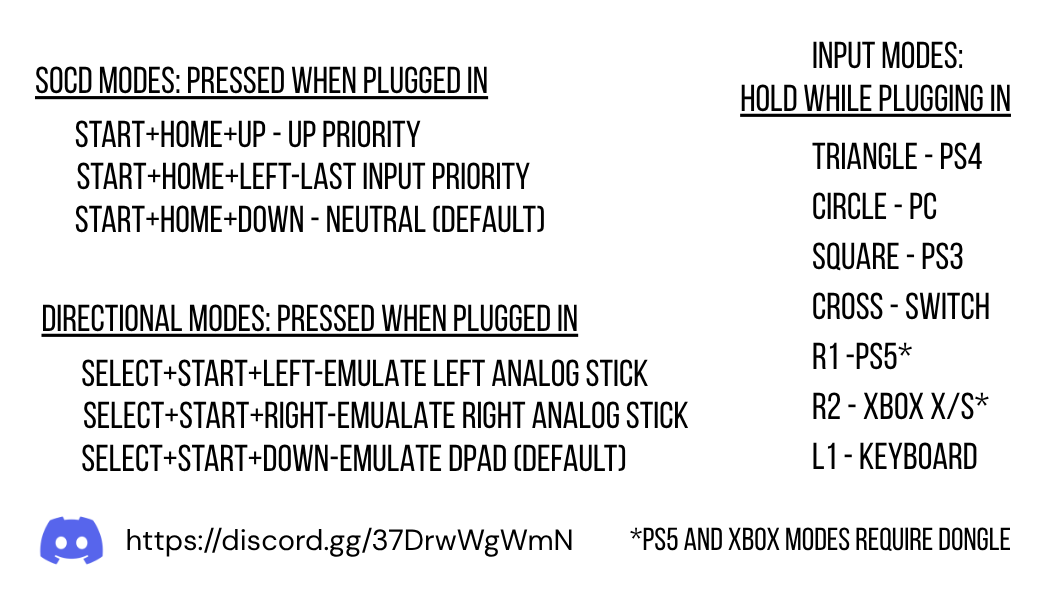

• SOCD Modes: Neutral, Last Priority, or Up Priority
• Uses Rp2040-Zero chip and latest GP2040-CE firmware

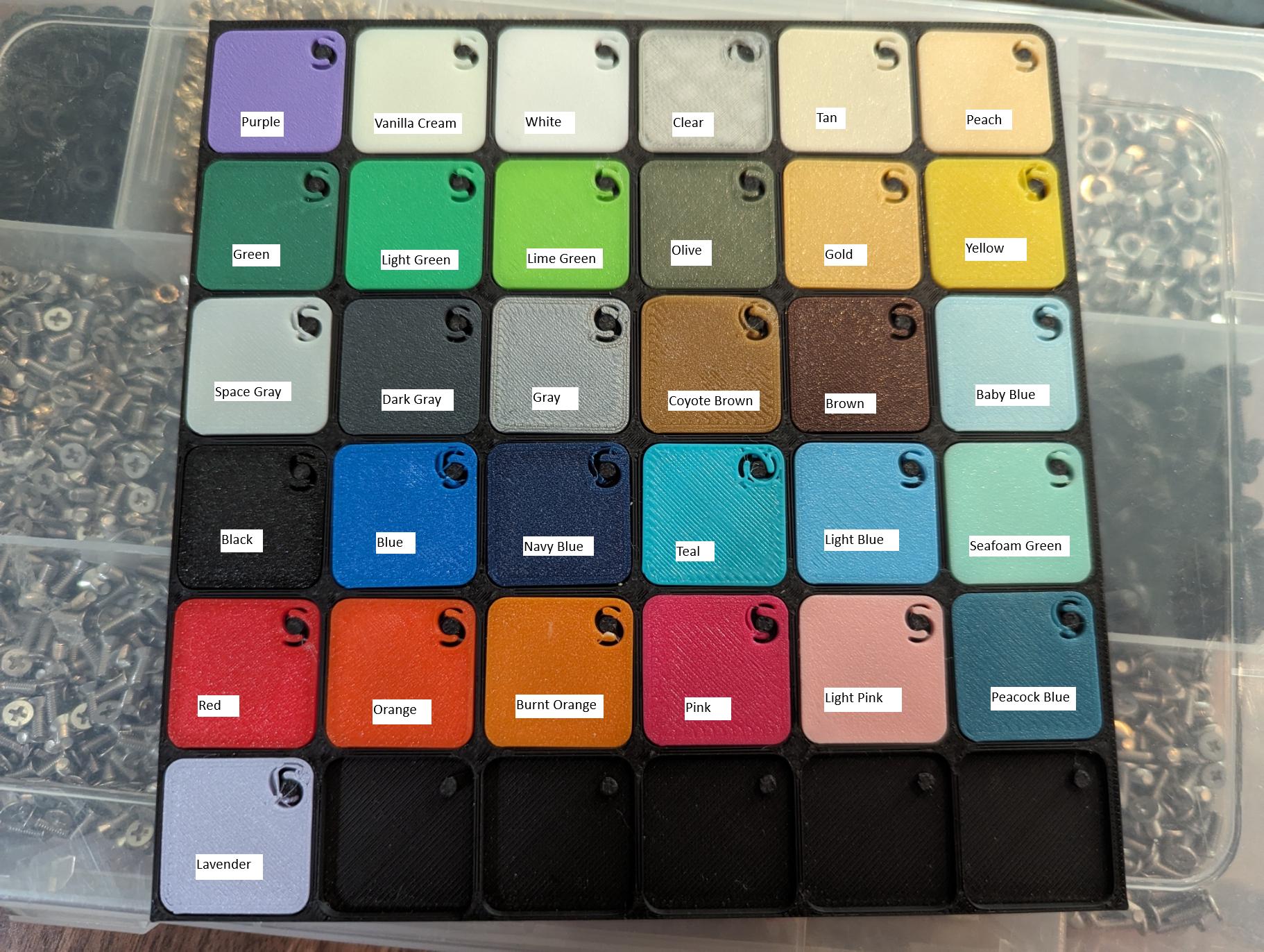

• Complete color customization. Please see attached photo for color options
• Dimensions: 218x126x11mm.
• Comes with replacement buttons, info card, rubber feet, USB C cable
• Input, Directional, SOCD modes save upon disconnecting. No need to do the button holds every time!
• Color customizer (May look slightly different in person) - https://turtleb0x.github.io/leverless-color-chart/

Based on Flatbox Rev 5:

https://github.com/jfedor2/flatbox/tree/master/hardware-rev5

https://github.com/Xchiliarch/flatbox_RGB-OLED

For more info and features on the GP2040-CE firmware:

https://github.com/OpenStickCommunity/GP2040-CE

Note: Since these are 3d printed, be careful on removing the buttons. It is highly advised to unscrew the bottom casing and remove them directly from the motherboard. If more replacement parts are needed, just reach out :). Also, please do not leave this controller out in the sun or heat. The controller case and buttons will warp.
