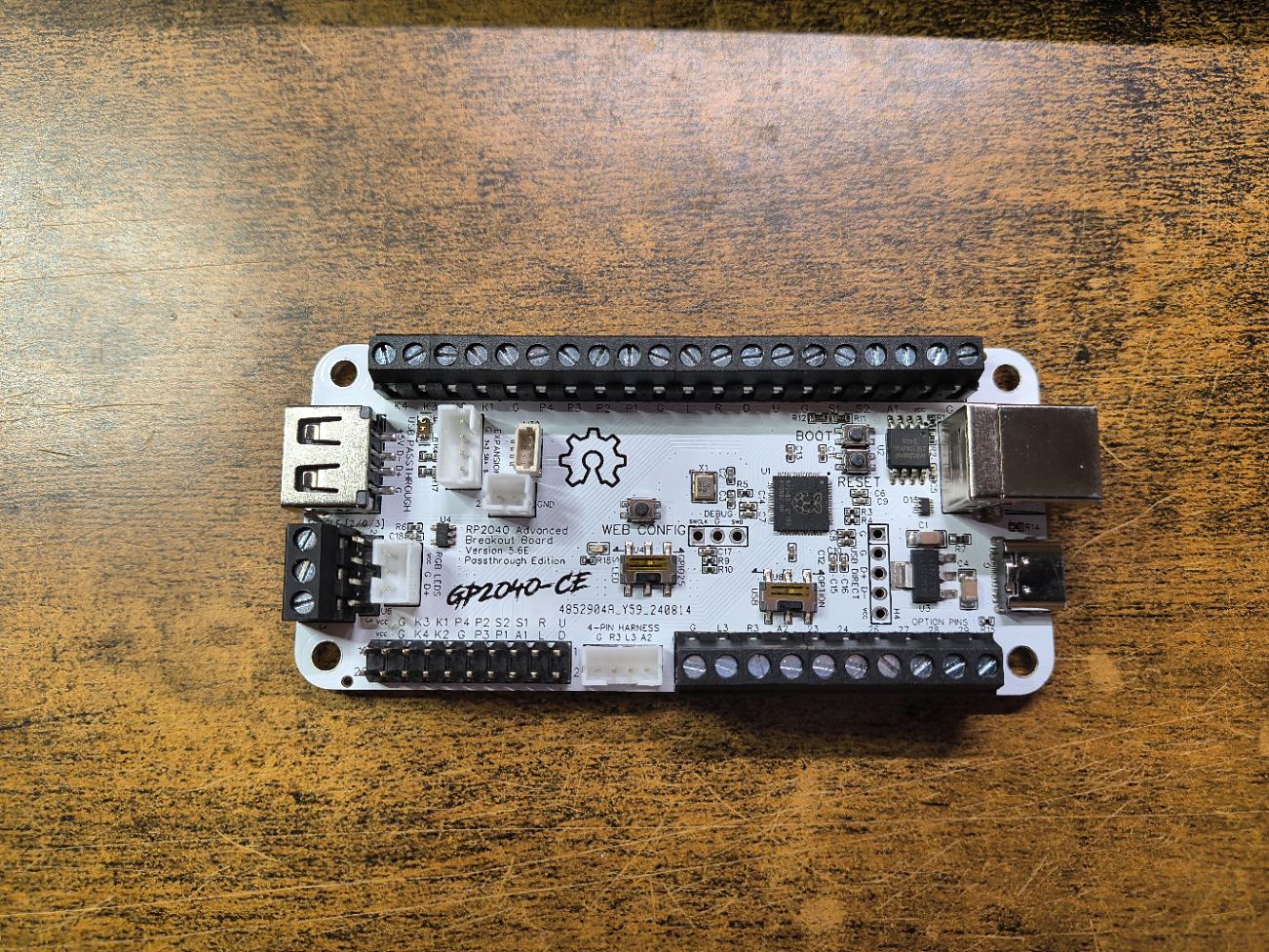

GP2040-CE Advanced Breakout Board Version 5.6E - USB Passthrough

Latest version 5.6E. Comes with both USB C and USB B connection.

GP2040-CE Board. Can also choose to include PS5 USB Host for PS5 authentication (fighting games)

v7.9 gp2040 firmware loaded.

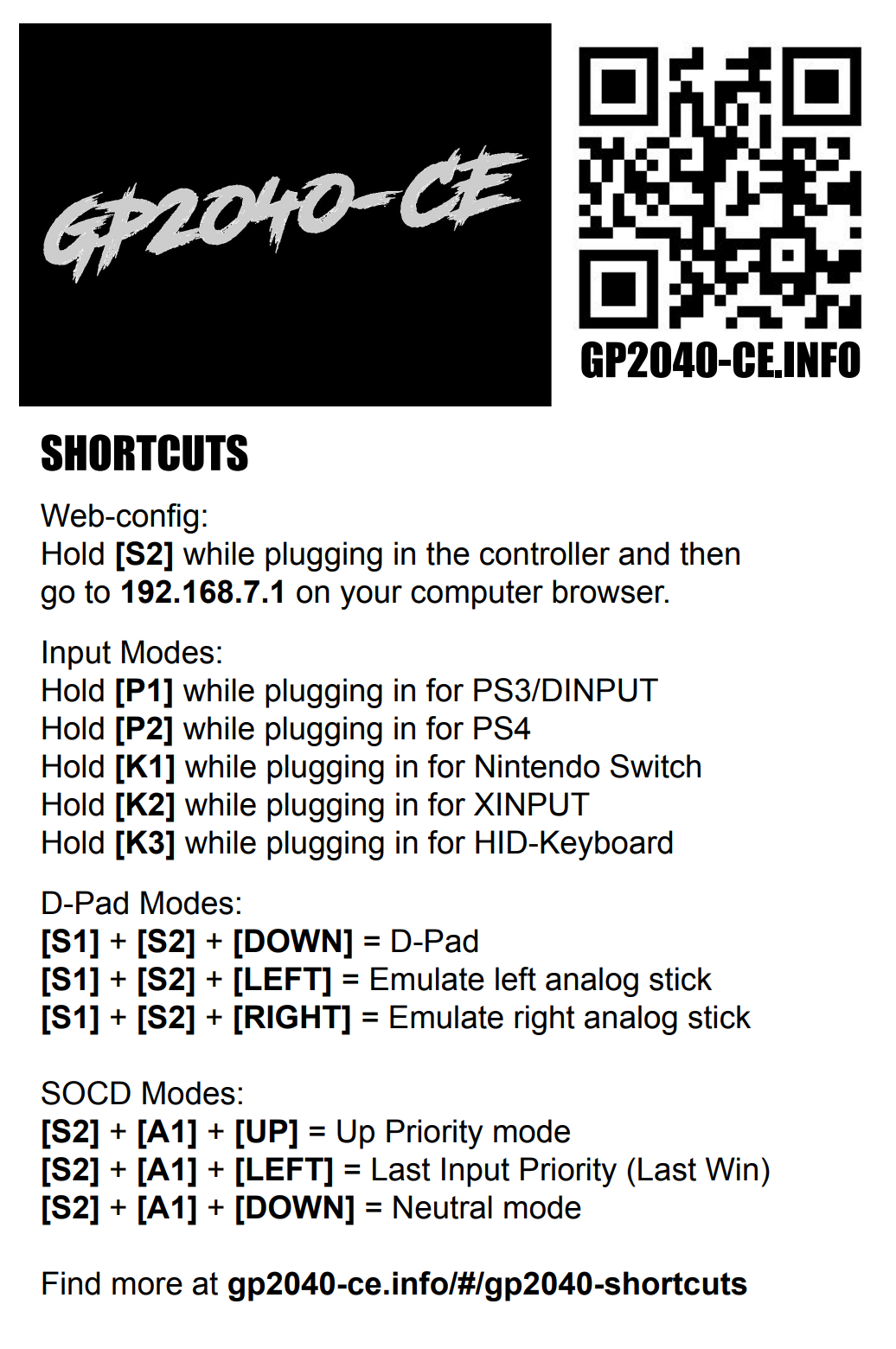

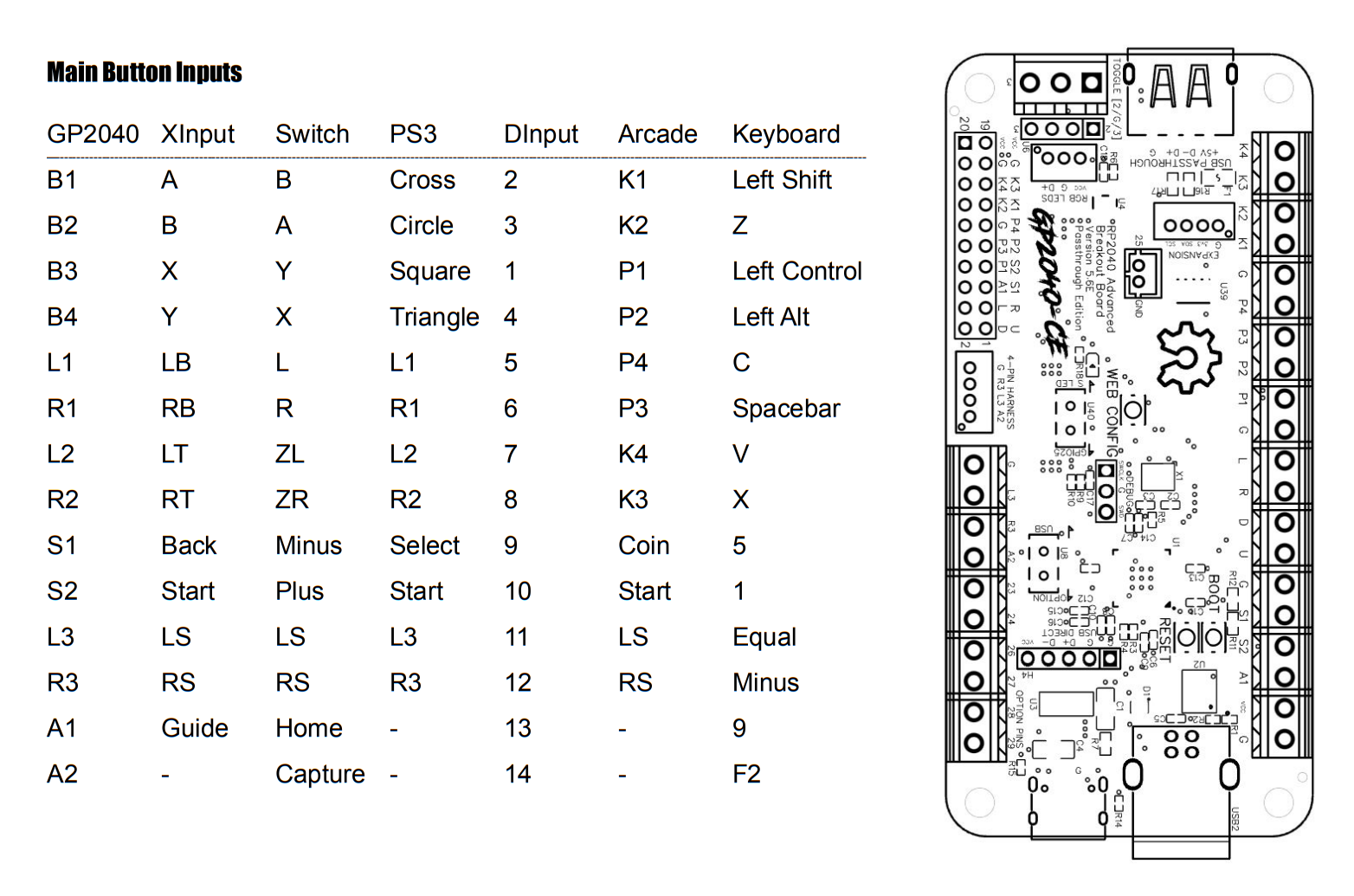

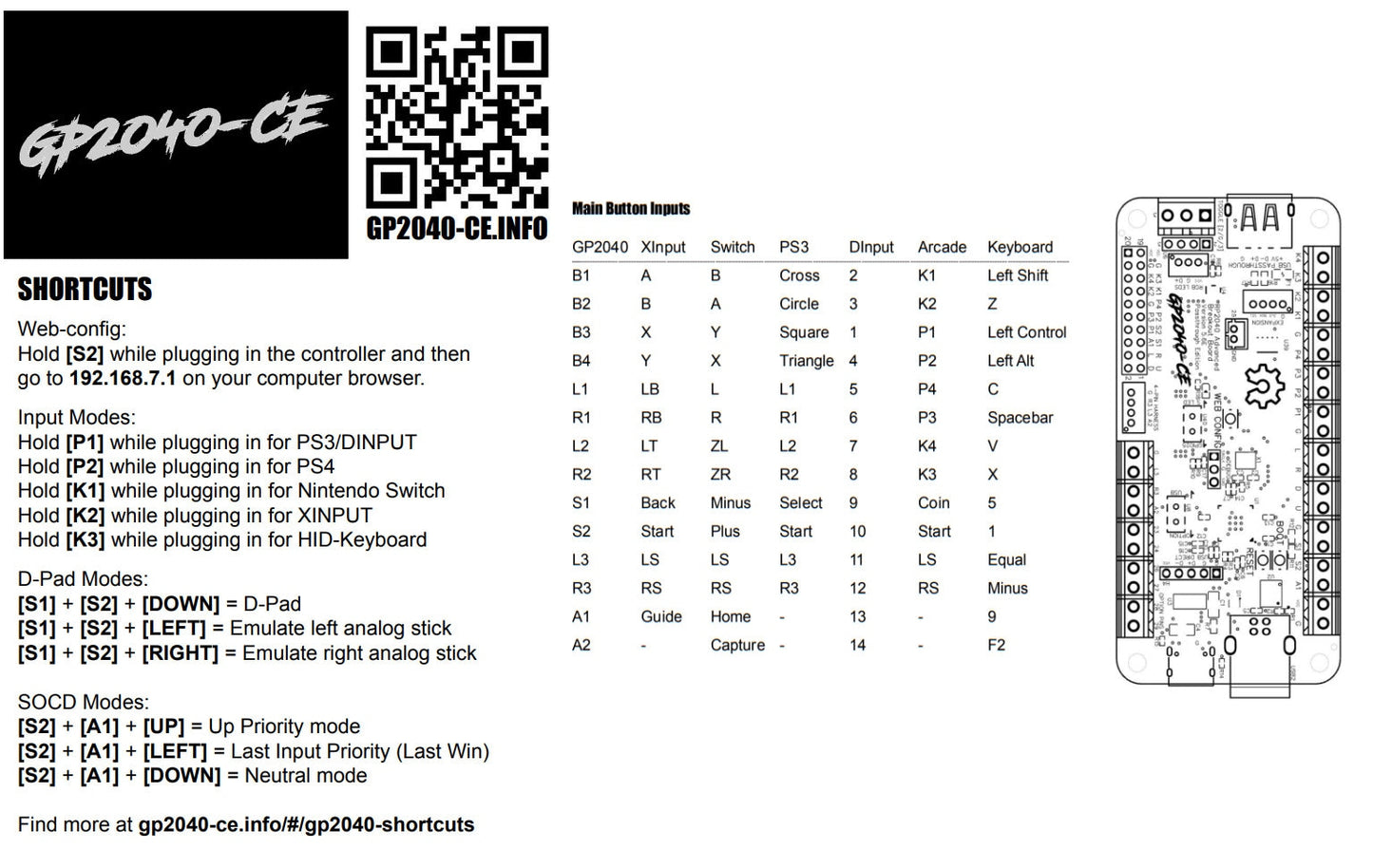

Uses a RP2040-Zero chip and has GP2040-CE firmware installed. Select from 5 input modes: XInput/PC, Nintendo Switch, PS4/PS5*, PS3 and Keyboard. Xinput/PC will be default. The firmware also supports 3 SOCD Modes! Neutral SOCD will be default (Up + Down = Neutral, Left + Right = Neutral.)

For more info on the GP2040-CE firmware: https://github.com/OpenStickCommunity/GP2040-CE

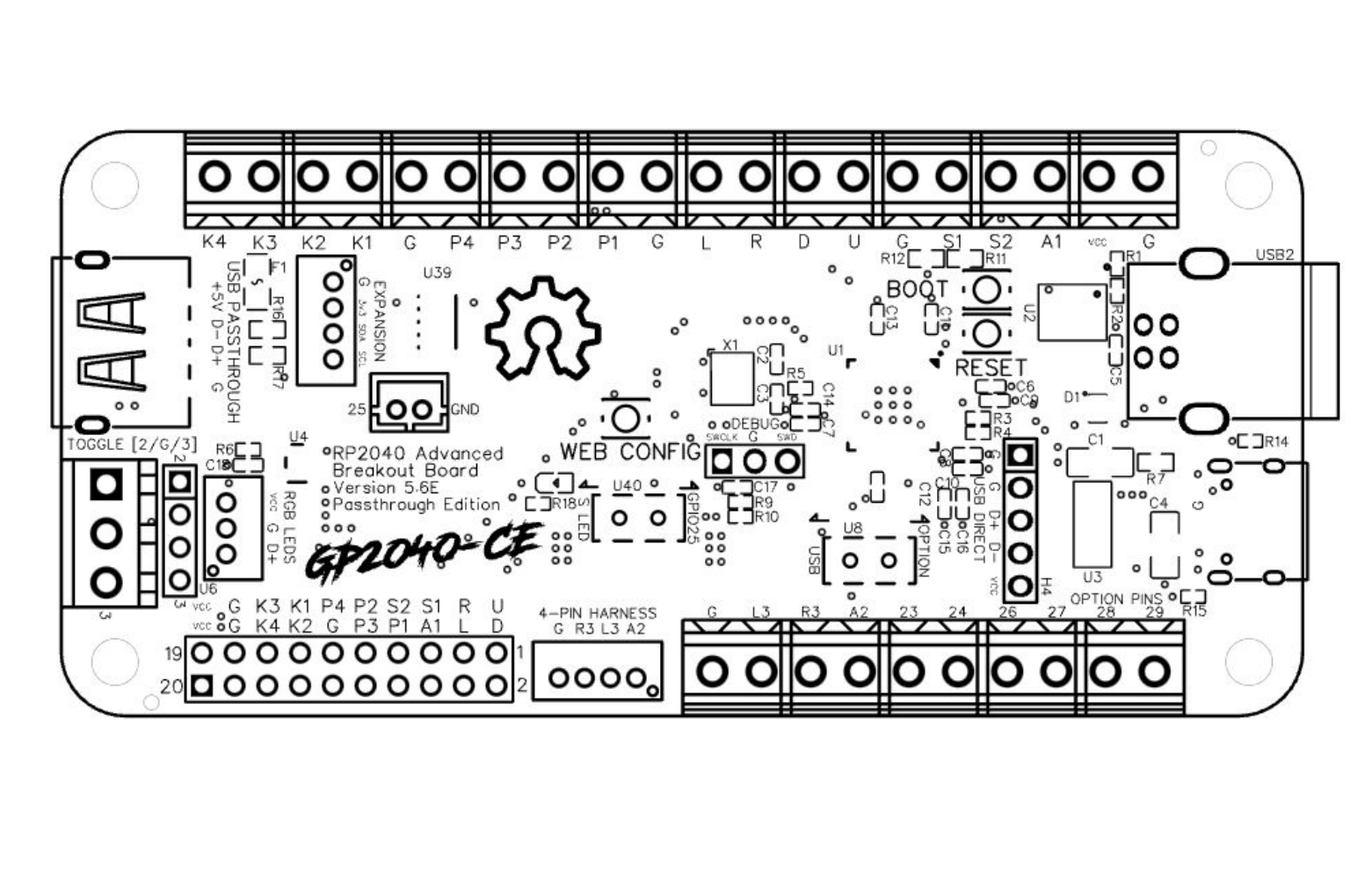

Based on RP2040 Advanced Breakout board - USB Passthrough Edition from the GP2040-CE project located at:

https://github.com/OpenStickCommunity/Hardware/blob/main/Boards/GP2040-CE%20Official%20Boards/RP2040%20Advanced%20Breakout%20Board/RP2040%20Advanced%20Breakout%20Board%20-%20Passthrough/README.md.

Copyright 2024 TheTrain

Licensed under CC BY 4.0
