LVS-MINI Arcade Leverless Controller
LVS-MINI Arcade Leverless Controller

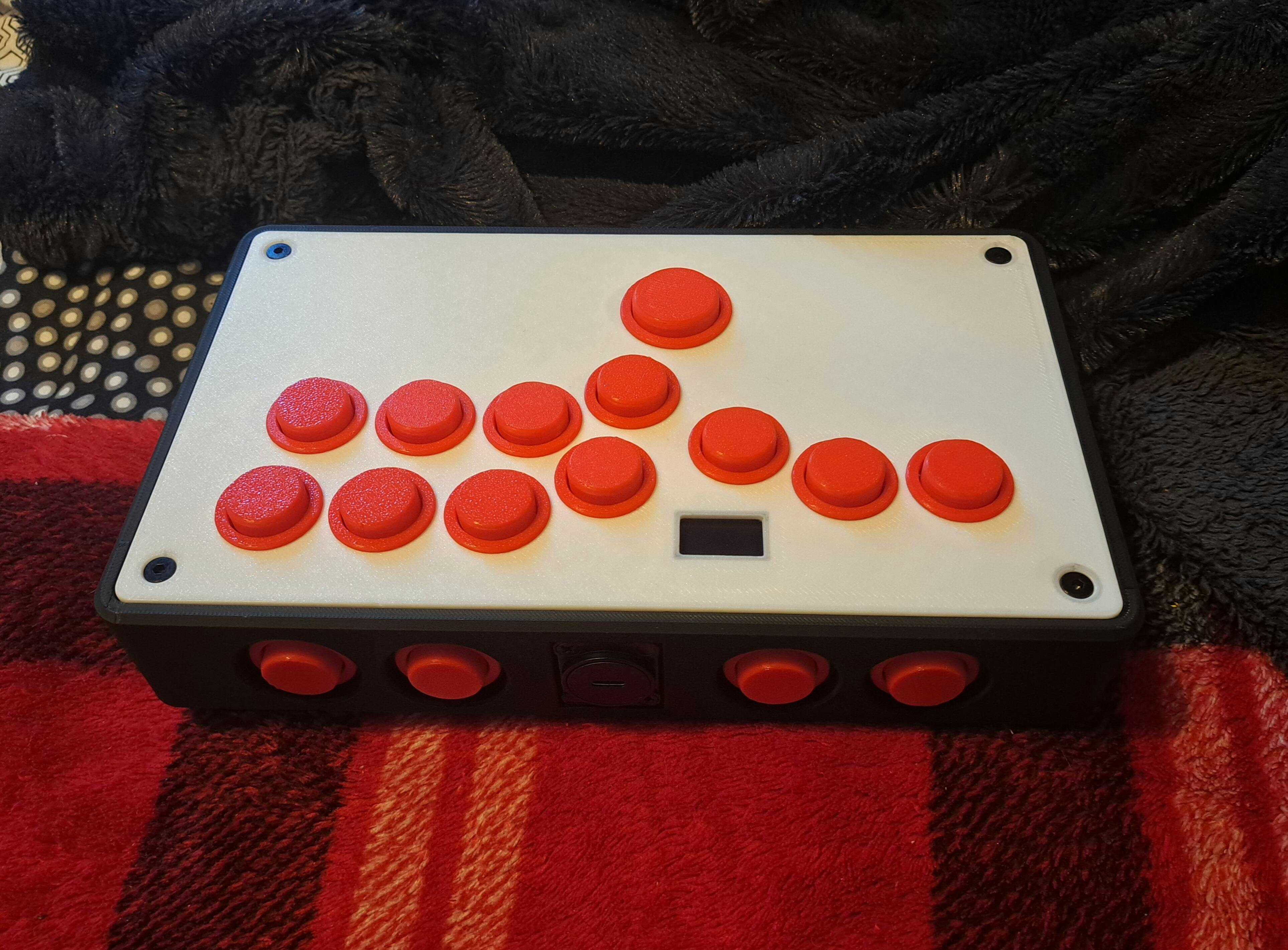

3d Printed Mini Leverless controller. Powered by Gp2040 firmware. Printed in PLA. Although they are pretty durable, they cannot stand high temperature (above ~130°F/~55°C) or it will start warping/melting. Try not to leave them in your car in a very hot day, but do reach out if you need replacements for anything!
This is designed to be used with low profile 24mm buttons! Regular height 24mm buttons may not fit due to wiring restraints. Low profile Qanba Gravity KS buttons will fit, but wire management may be tight.
- Choose between two different PCBs: GP2040 (PC, PS4, Switch) + PS5 Adapter (only fighting games) or Brook Gen5x (PC, PS5, Xbox S/, Switch)
- Heat set brass inserts for ease of assembly and disassembly
- SOCD Modes: Neutral, Last Priority, or Up Priority
- Uses 24mm OSBMX low profile buttons
- Choose between silent or regular linear switches. Currently, switches are Akko Silver Pro v3 and Outemu Silent Peach v3.
- Panel mounted USB C input connection
- Many colors to choose from! Please see attached photo for color options of buttons, Top panel, bottom panel, middle frame.
- Dimensions: 250 x 150 x 42mm

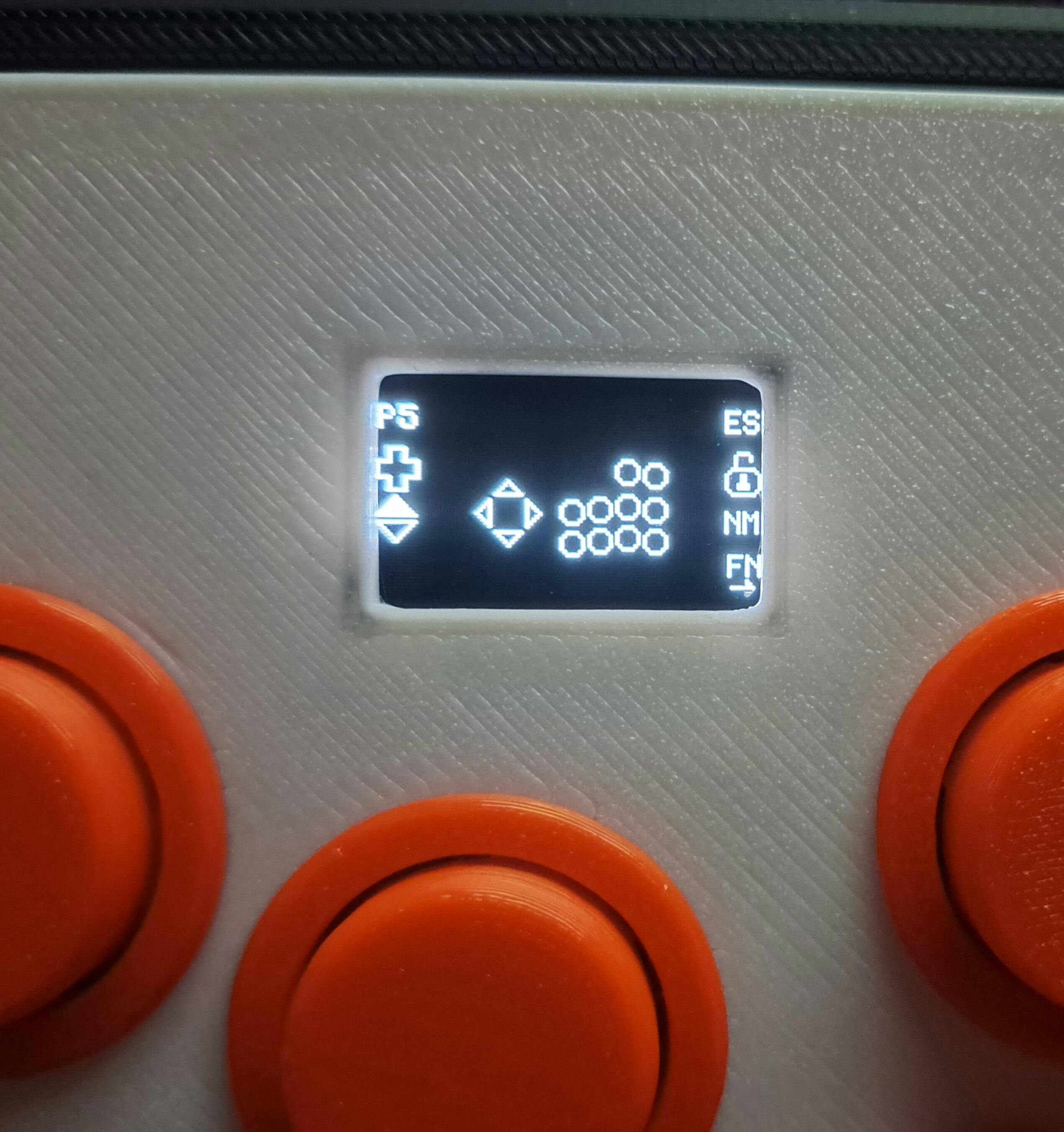

- Now comes with OLED screen in full builds!
This is a heavily remixed design by me, Remixed from gp2040 open stick :
https://github.com/OpenStickCommunity/Hardware/tree/main/3D%20Prints/Fightstick%20Case
For manual of Gen5x:
