FS-Ultra Arcade Fight Stick

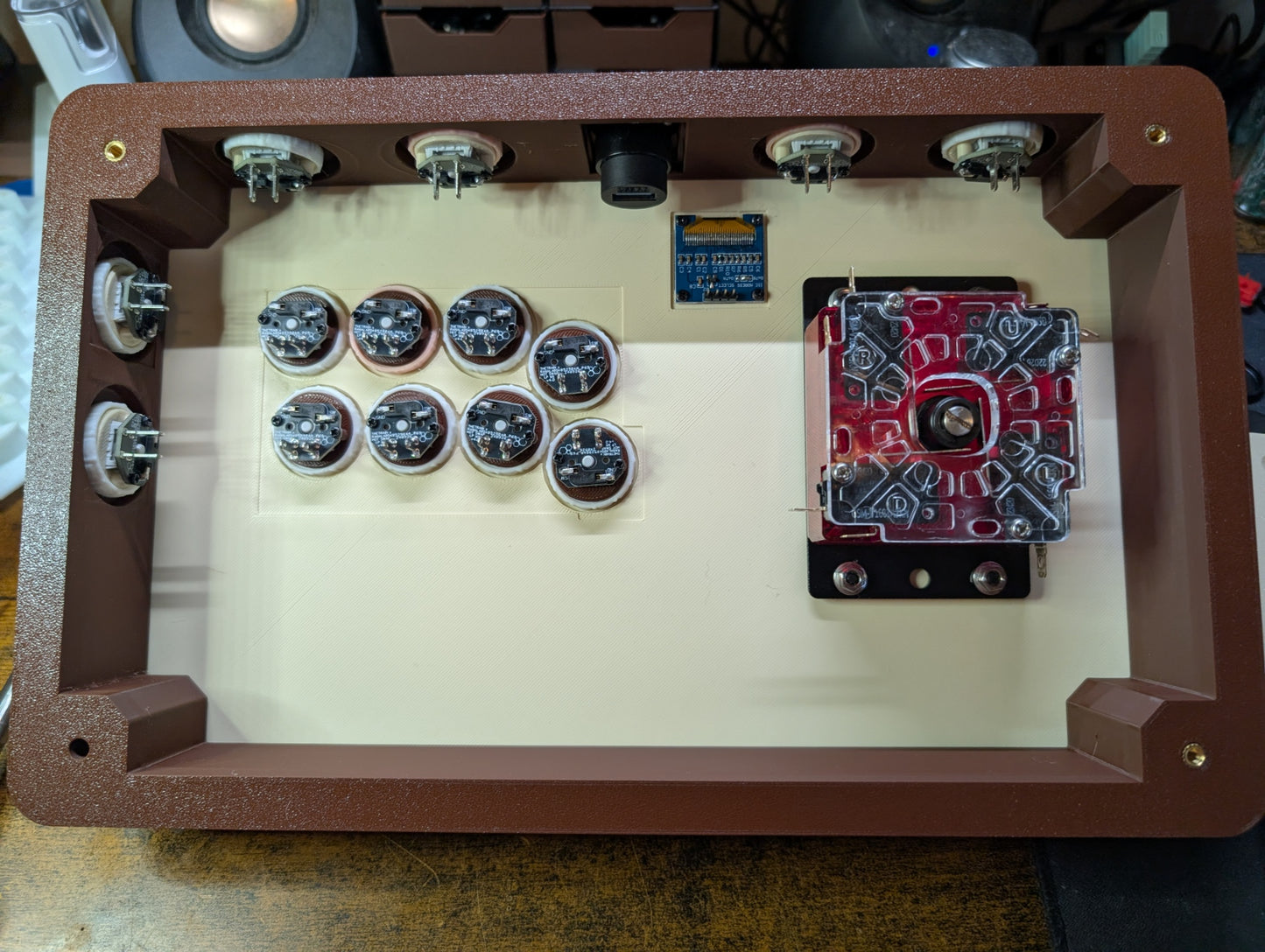

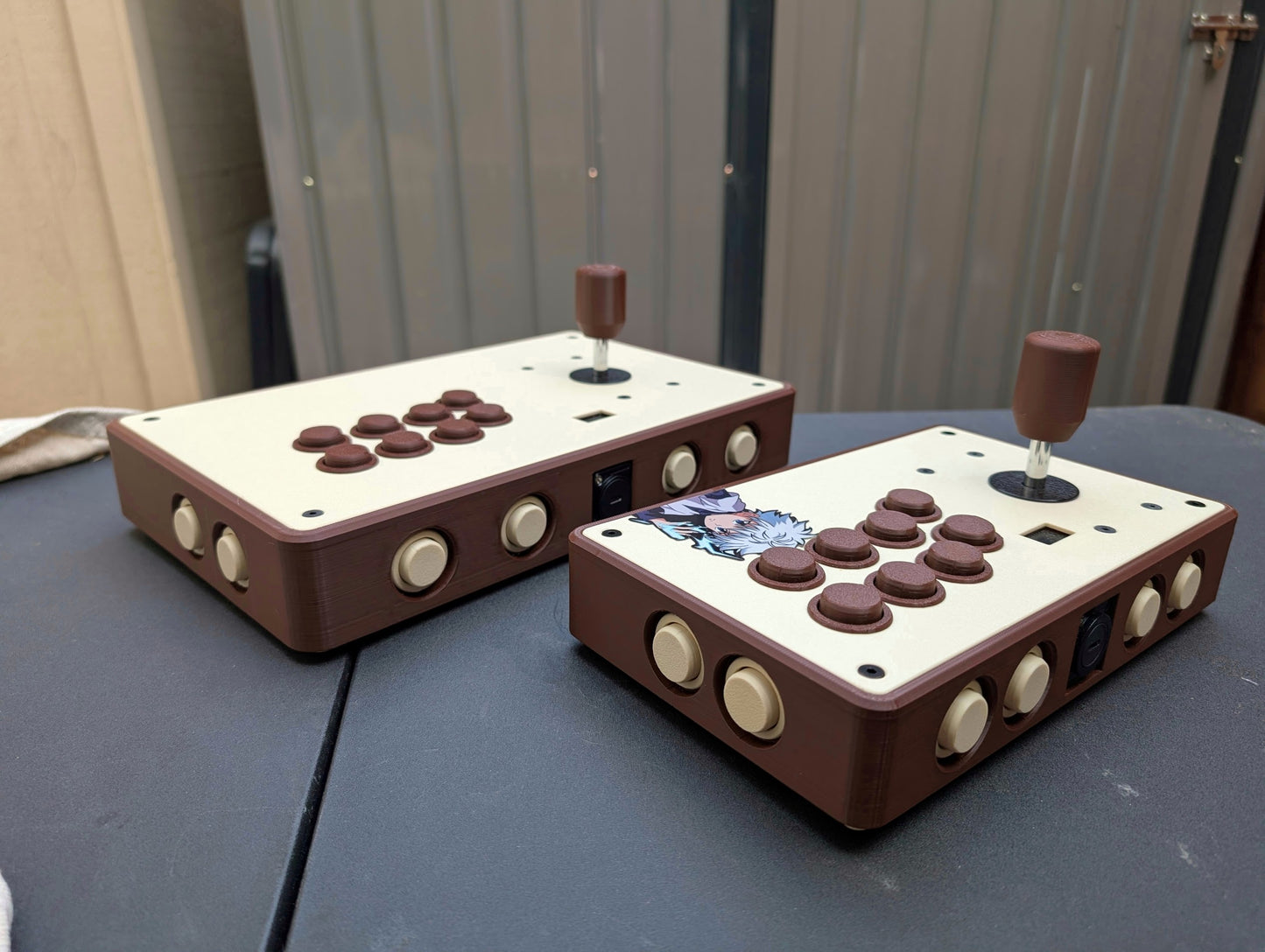

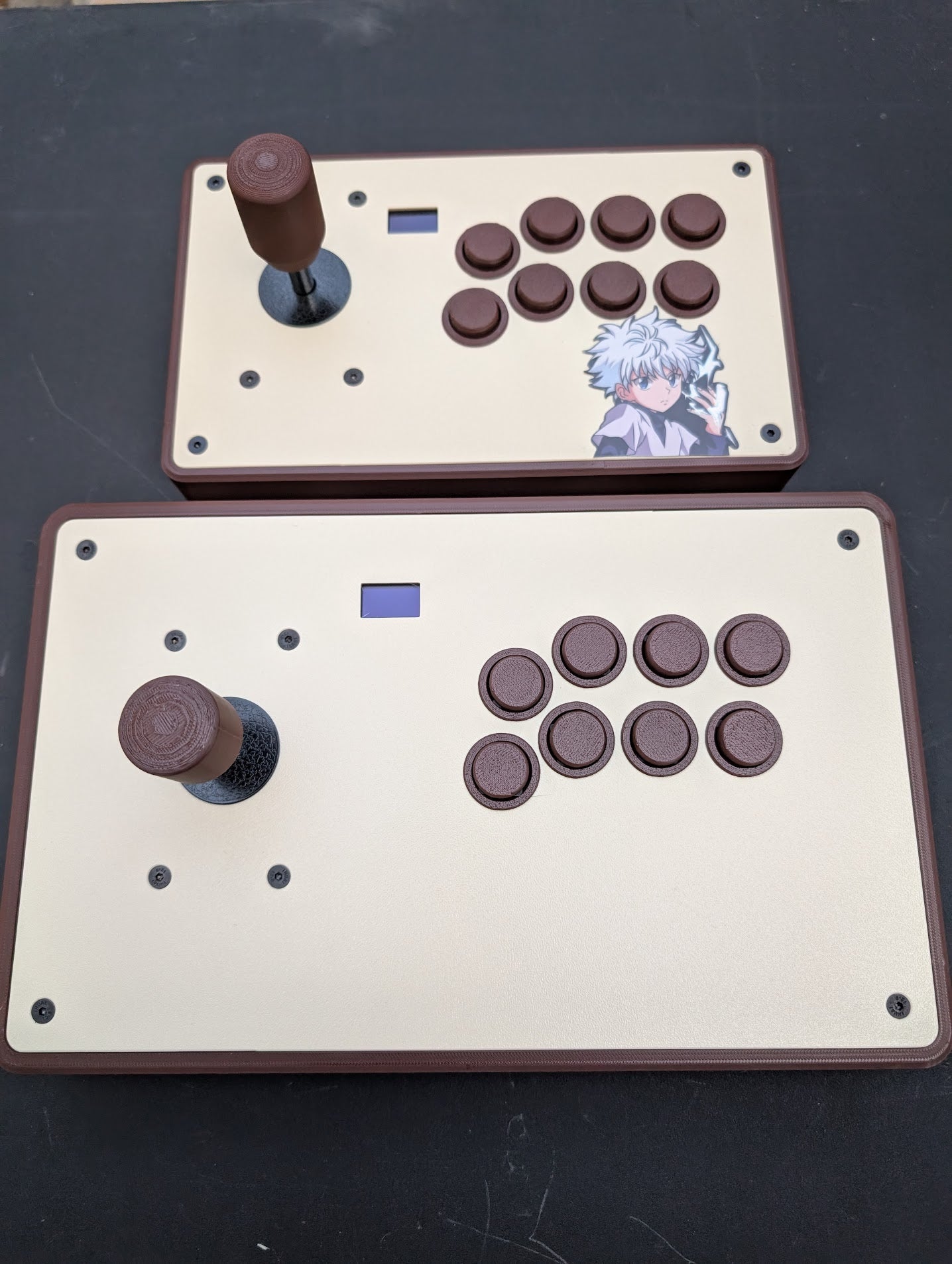

Introducing the FS-Ultra! The bigger brother of FS-MINI. Sports a 25% larger enclosure to fit conventional 24mm and 30mm buttons.

• DIY options available if you would like to use your own internals

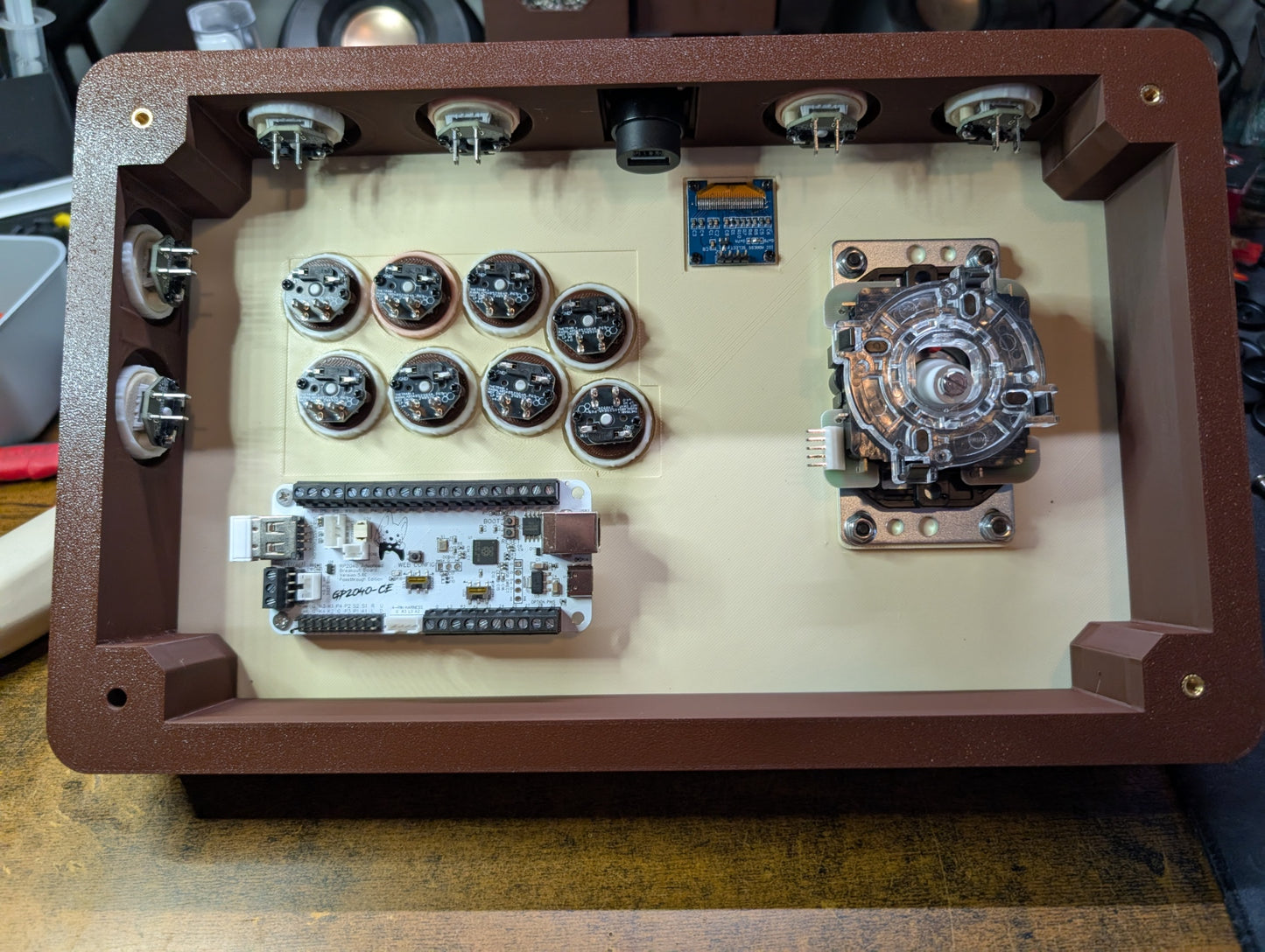

• Choose between two different PCBs:
  • GP2040 - PC, Switch, PS4 + PS5 Adapter or Xbox S/X Adapter
    • When choosing GP2040 + PS5 adapter, only compatible fighting games will work on PS5.

  • Brook Gen5x - PC, All PS5, All Xbox X/S, Switch

• 3d printed OSBMX v1 switch hot swappable buttons. Uses MX style switches
• Choose between silent or regular linear switches. Currently, switches are Akko Silver Pro and Outemu Silent Peach.
• Start, Select, Home/Guide, Touchpad Key, and L3/R3 side buttons
• Compatible with korean knee neo lever (35mm low collar) and joysticks simliar to sanwa JLX
• Heat set brass inserts for ease of assembly and disassembly
• SOCD Modes: Neutral, Last Priority, or Up Priority

• Choose 24mm or 30mm buttons for top panel
• Panel mounted USB C input connection

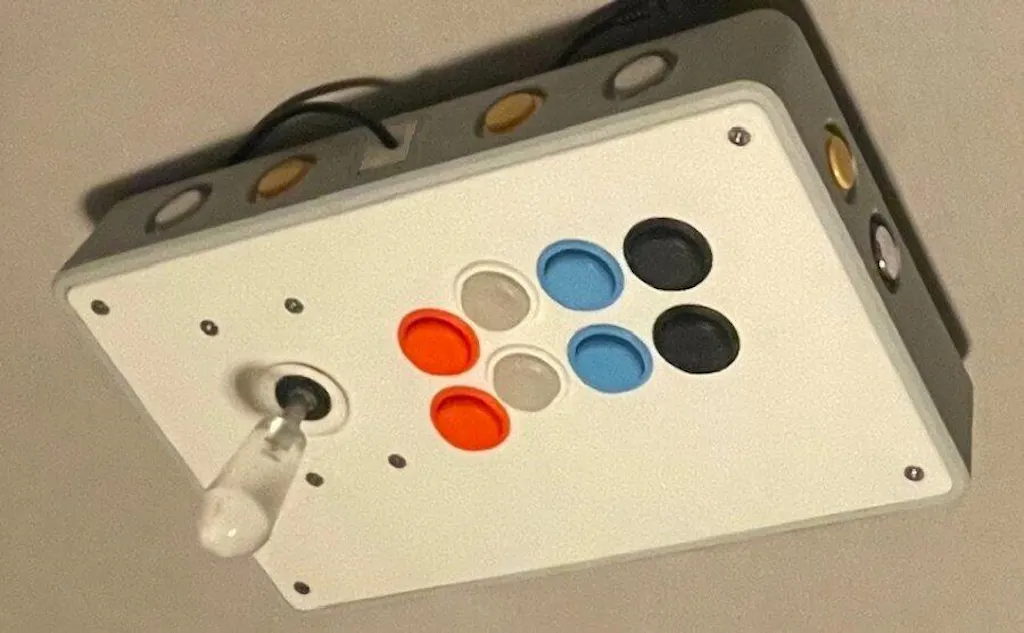

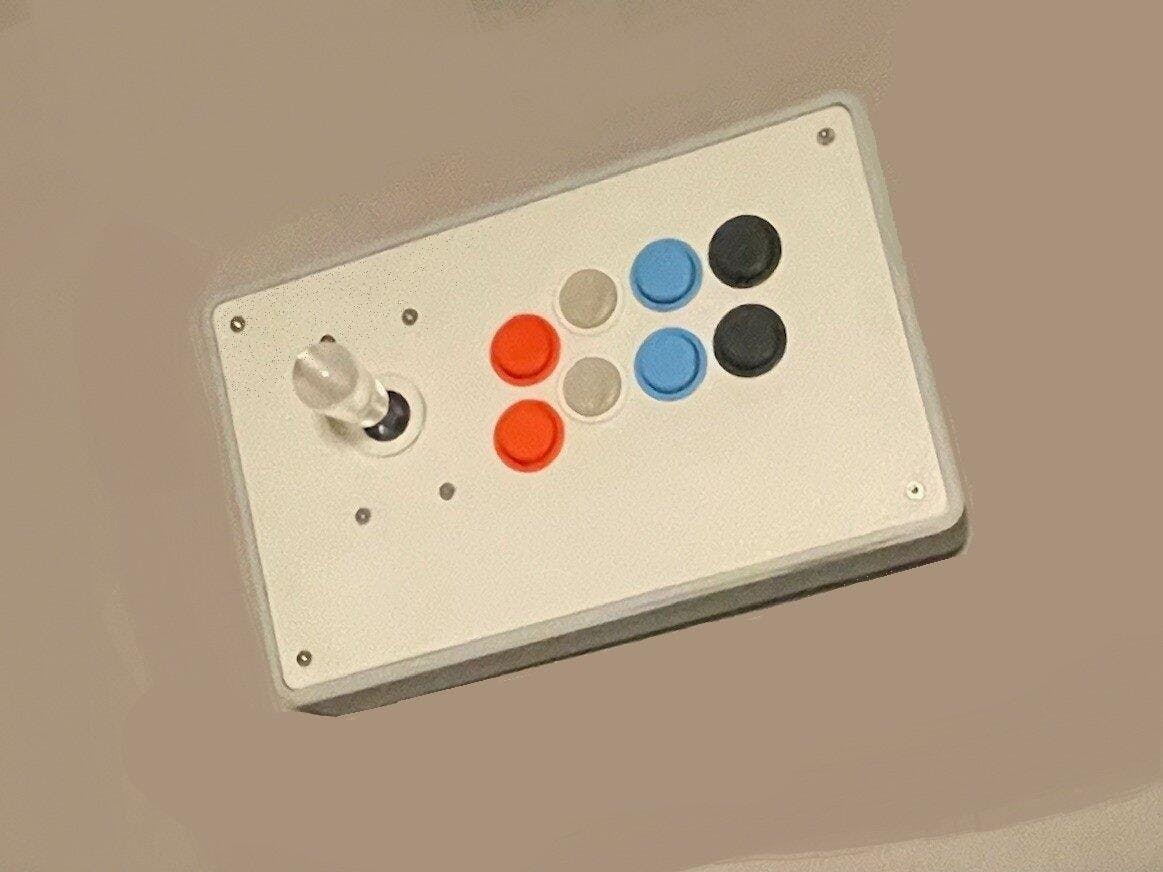

• Many colors to choose from! Please see attached photo for color options of buttons, Top panel, bottom panel, middle frame.
• Qanba Gravity Silent joystick will be installed when choosing silent option
• Sanwa JLX-TP-8YT-SK joystick will be installed when choosing linear option
• Dimensions: 320 x 200 x 49 mm
• If choosing the DIY options, choose between oled cutout or no oled cutout for screen install
• Nobi style 3d printed top will be included in all kits!

GEN-5X Specification and Instruction Manual

This is a heavily remixed design by me, Remixed from gp2040 open stick :

https://github.com/OpenStickCommunity/Hardware/tree/main/3D%20Prints/Fightstick%20Case

3d Printed Mini fightstick is printed in PLA. Although they are pretty durable, they cannot stand high temperature (above ~130°F/~55°C) or it will start warping/melting. Try not to leave them in your car in a very hot day, but do reach out if you need replacements for anything!
